1U Chassis |
|||
|
|
Item No. TW-101J1 2D drawing 1. Dimension: 60.7 (D) x 44.1 (W) x 4.4 (H) cm * handle not included 2. Cooling: 5 x 4 x 4cm intake fan 3. Space: 1 long card 4. System boards: Backplane or ATX motherboard (option) 5. Speaker: 8ohm 0.4W 6. Power supply: 1U supply 250W (option) 7. Drive bays : 1 x 5.25" FDD + 1 x 3.5" FDD + 1 x 3.5" HDD Individual Packing information: (1) 65(D) x54 (W) x14 (H) cm,1.8 CuFt. (2) N.W. 8 Kgs, G.W.10 Kgs. ¡@ |
||
2U Chassis |
|||
|
|
Item No.
TW-272-ATXGT101
2D
drawing 1. Dimension: 47(D) x 42.65(W) x 8.8 (H) cm * handle not included 2. System boards: ATX M/B, PCI3P x 1 or AGP RISER CARD x 1 3. Drive bays: 1 x 5.25" FDD+1 x 3.5" FDD+5 x 3.5" HDD 4. Cooling: 2 x 8 x 8 cm intake fan 5. Speaker: 8ohm 0.4W 6. Power supply: For 2U P/S Individual Packing information: (1) 59(D) x 55(W) x 23(H) cm, 2.7 CuFt. (2) N.W.. 10 Kgs, G.W.12 Kgs. |
||
|
3U Chassis |
¡@ | ||
|
|
Item No. TW-305GT101 2D Drawing 1. Dimension: 41(D) x 42.65(W) x 13.8 (H) cm * handle not included 2. Cooling: 2 x 8 x 8cm intake fan. 3. Space: 7 or 10 long card 4. System boards: for ATX motherboard (optional) 5. Speaker: 8ohm 0.4W 6. Power supply: micro supply 150W (optional) 7. Drive bays : 2 x 5.25" FDD+1 x 3.5" FDD +1 x 3.5" HDD Individual Packing information: 1. 59(D) x56 (W) x24 (H) cm, 2.8CuFt. 2. N.W.. 9 Kgs. G.W.11 Kgs. |
||
|
4U Chassis |
|||
|
|
Item No. TW-570GT101
2D Drawing 1. Dimension: 45(D) x 42.65(W) x 17.7 (H) cm * handle not included 2. Cooling: 12 x 12 cm intake fan 3. Space: for 10 long cards 4. System boards: for 8/14 slot (ISA OR PCI/ISA) B/P or BABY AT, ATX M/B&BNC board (optional) 5. Speaker: 8ohm 0.25W 6. Power supply: PS2 or MINI redundant P/S (optional) 7. Drive bays: 3 x 5.25" FDD+1 X 3.5" FDD+1 x 3.5" HDD 8. Air filter washable Individual Packing information: (1) 66(D) x 56 (W) x 27.5 (H) cm, 3.6Cu.Ft. (2) N.W.13 Kgs, G.W.15 Kgs. |
||
|
5U Chassis |
¡@ | ||
|
|
Item No. TW-726GT101
2D Drawing 1. Dimension: 58 (D) x 42.65 (W) x 22.19 (H) cm * handle not included 2. Cooling: 1 x 12x 12 cm intake fan 3. Space: 10 long card 4. System boards: ATX M/B (option) 5. Speaker: 8ohm 0.4W 6. Filter washable 7. Power supply: 250W PS2 P/S (option) 8. Drive bays : 2 x 5.25" FDD + 1 x 3.5" FDD + 4 x 3.5" HDD Individual Packing information: (1) 75(D) x56 (W) x33 (H) cm,4.7CuFt. (2) N.W.18.6 Kgs. G.W.20.1 Kgs. |
||
|
6U Chassis |
¡@ | ||
|
|

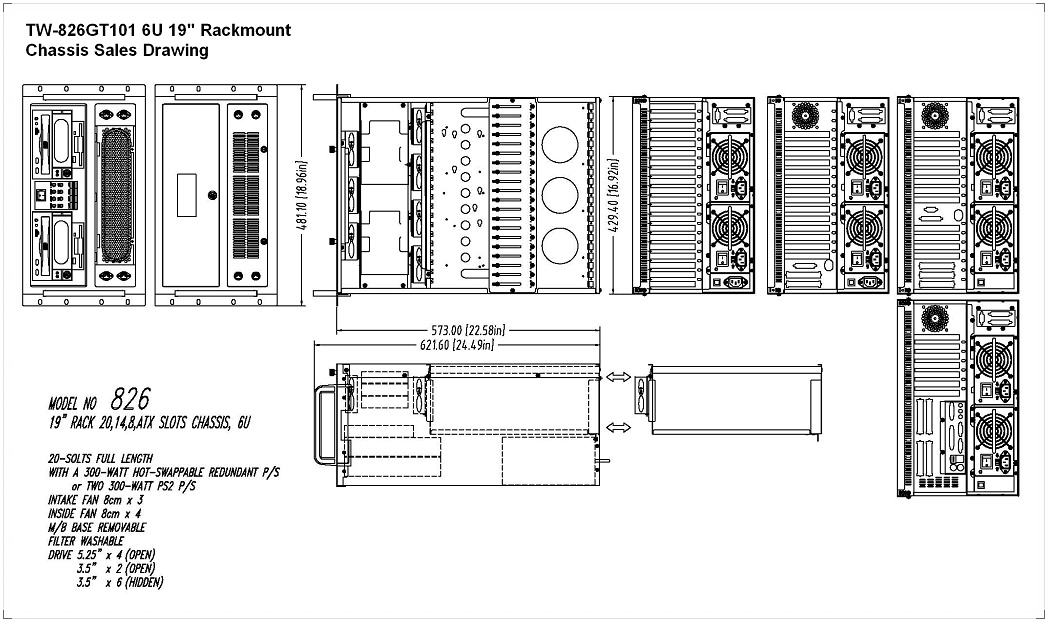

Item No. TW-826GT101
2D Drawing 1. Dimension 57(D) x 42.65(W) X 26.6(H) cm * handle not included 2. System boards: For ATX motherboard or B/P (Optional) 3. Space: 20 long card 4. Drive bays: 4 x 5.25" FDD + 2 x 3.5" FDD+ 6 x 3.5" 5. Cooling: Seven 8 x 8 cm intake fan 6. Speaker: 8ohm 0.25W (Option) 7. Power supply : PS2 or hot swappable redundant P/S (Optional) 8. Air filter: Washable Individual Packing information: (1) 73(D) x 55 (W) x 42 (H) cm, 5.0 CuFt. (2) N.W.22 Kgs. G.W.25 Kgs. |
||
|
7U Chassis |
¡@ | ||
|
|

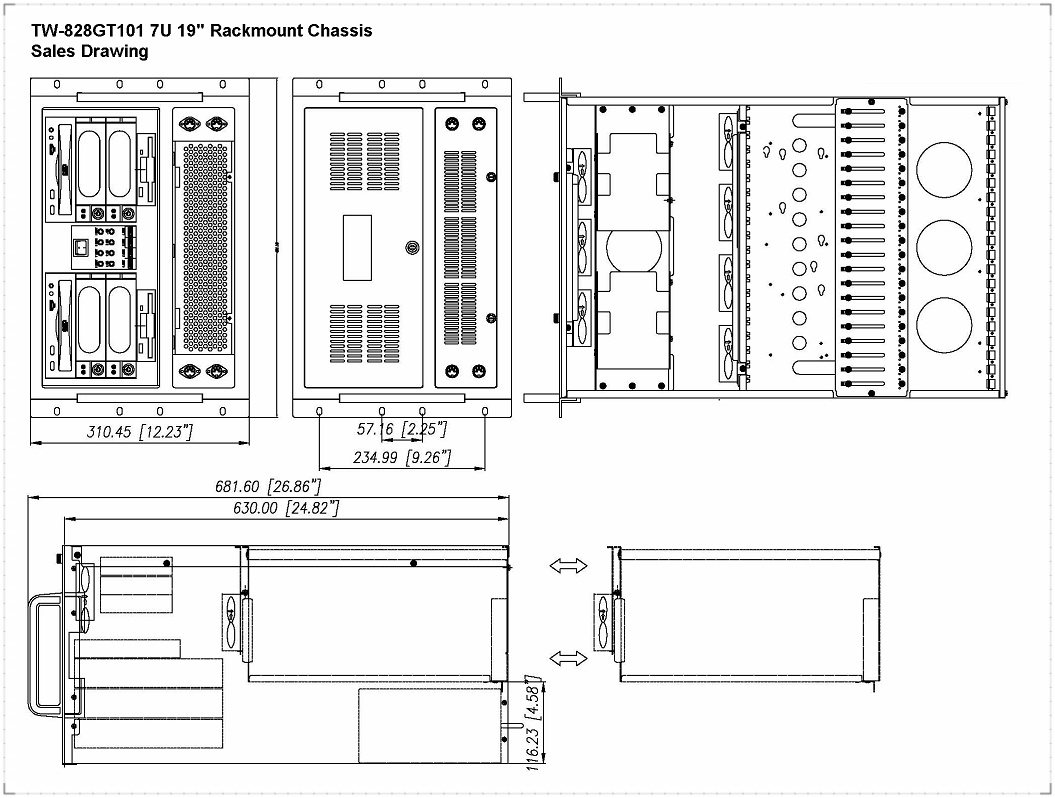

Item No. TW-828GT101
2D Drawing 1. Dimension: 57(D) x 42.65(W) x 31.045 (H) cm * handle not included 2. System board: for backplane ATX motherboard or B/P. 3. Cooling: seven 8 x 8 cm intake fan. 4. Spece: 20 long card. 5. Speaker: 8ohm 0.4W (Option) 6. Power supply: PS2 or hot swappable redundant P/S. 7. Drive bays: 6 x 5.25" FDD + 2 x 3.5" FDD+ 6 x 3.5" HDD. 8. Air filter washable. Individual Packing information: (1) 73(D) x 55 (W) x 46 (H) cm, 6.7 CuFt. (2) N.W. 22.7 Kgs. G.W.24.7 Kgs. |
||
| ¡@ | ¡@ | ||
|
|
|||
